Sage Sunshade Connectors

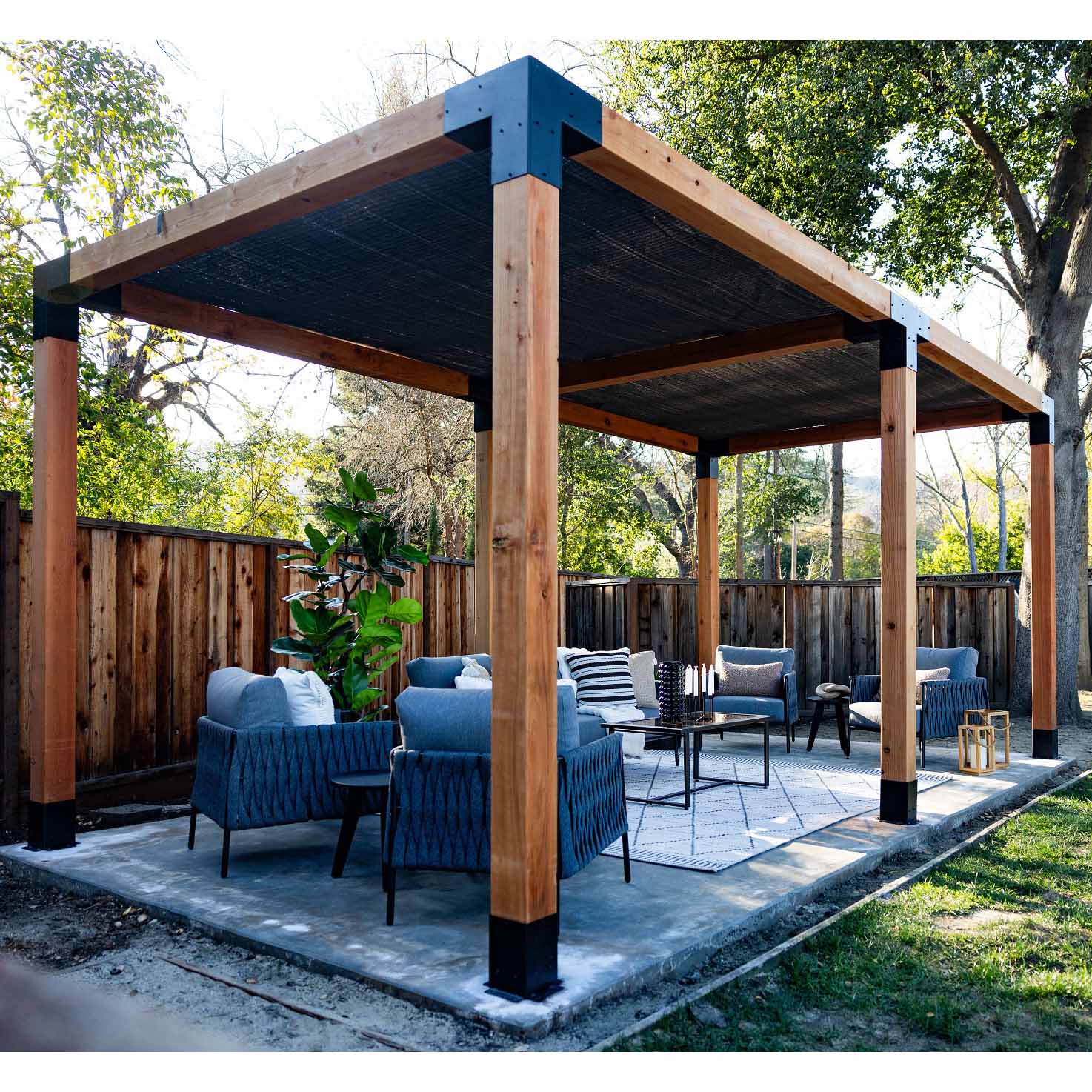

Use these connectors with a Sage canopy and 4x4 or 6x6 lumber to create a complete Sage Sunshade pergola.

Each bracket has an open top so posts can be put up, then beams can be dropped in from the top easily.

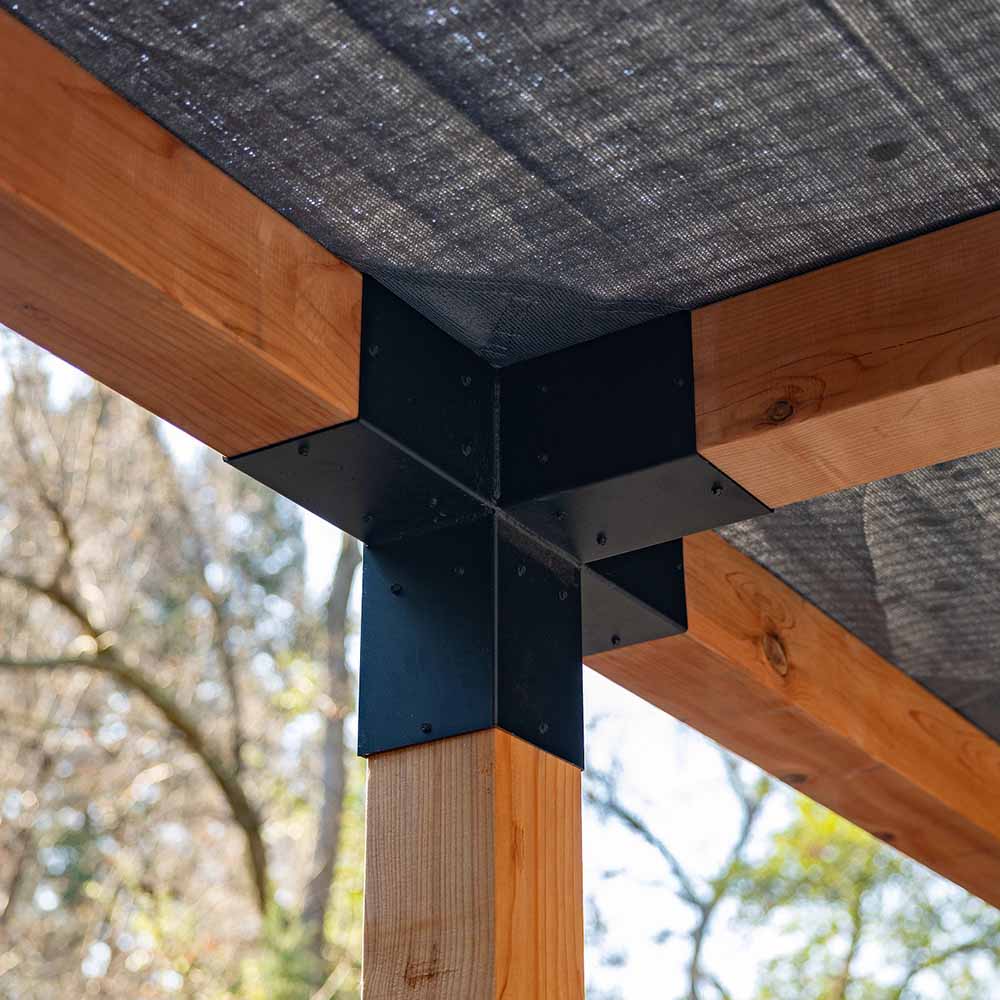

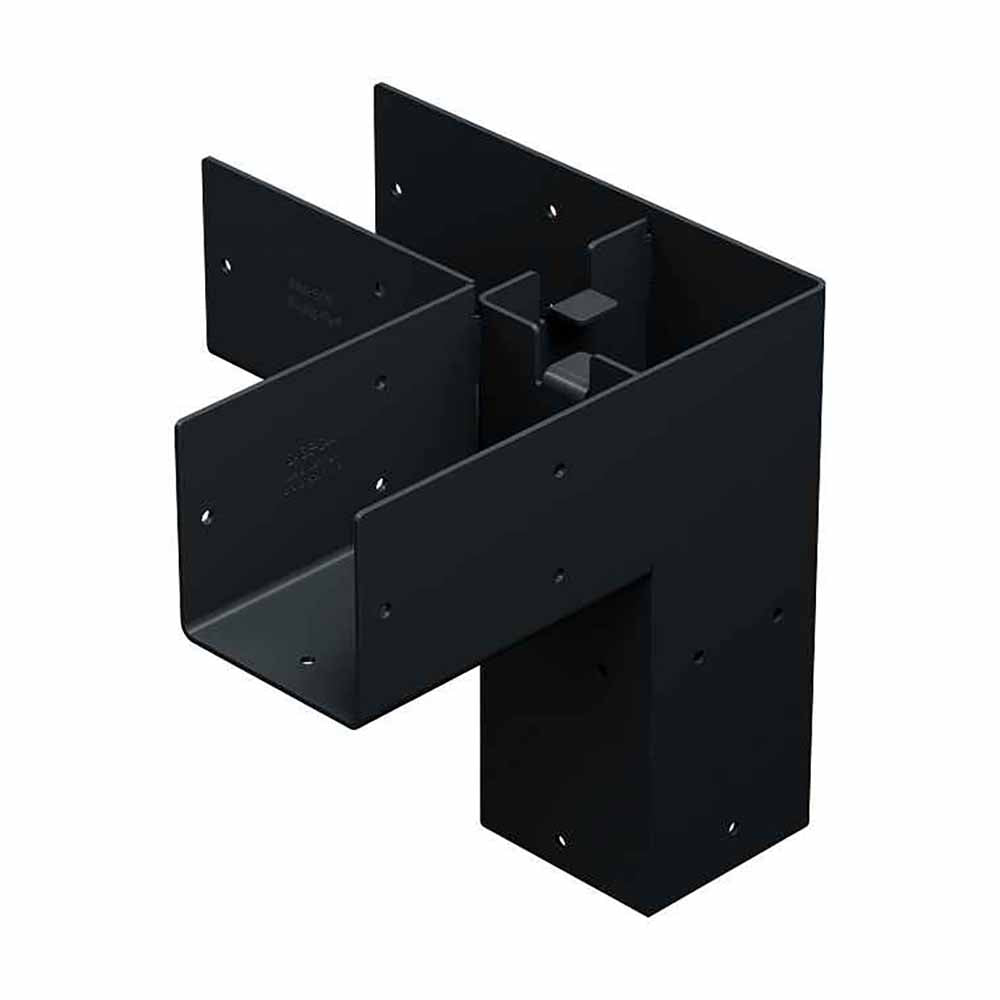

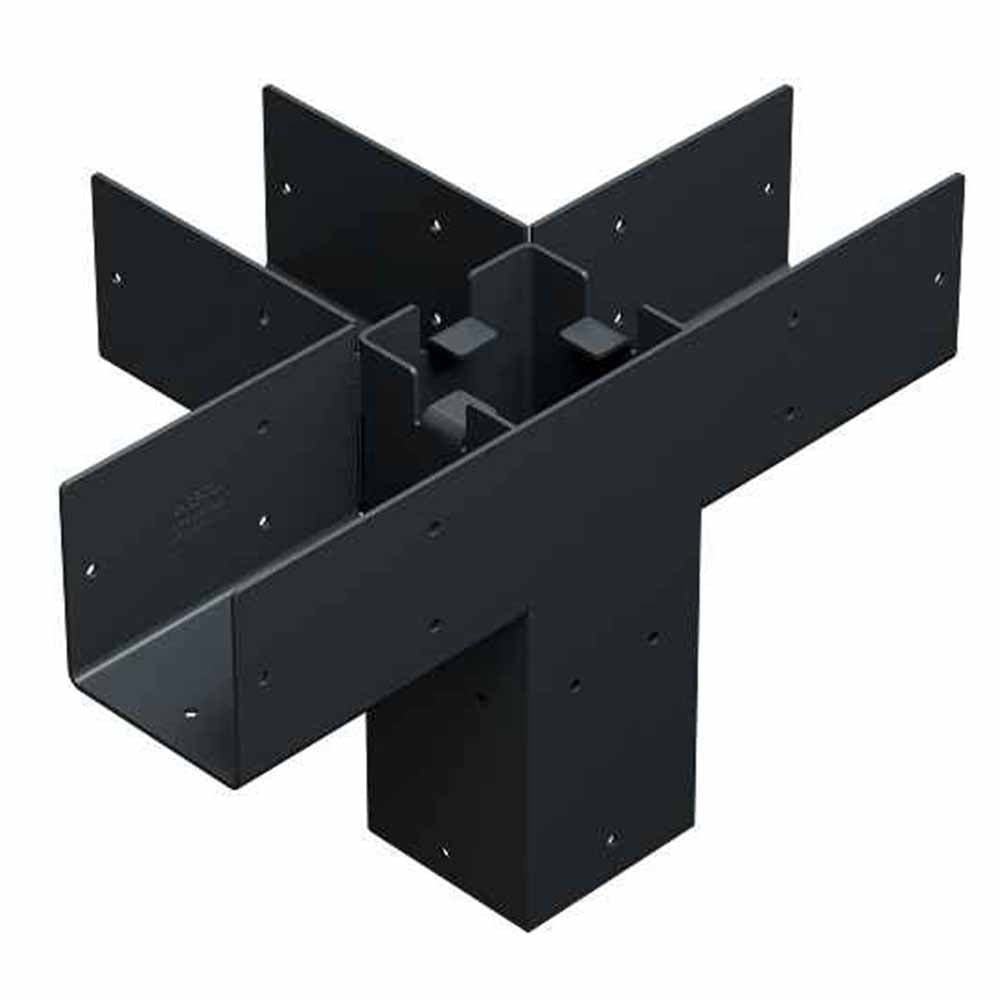

For simple 8x8 or 10x10 shade structures, four corners and four posts bases would be needed. For double or triple wide structures, a middle-T connector would be needed on all middle intersections. For example, a 10x20 would need 4 corner connectors, 2 middle-T connectors, and 6 post bases.

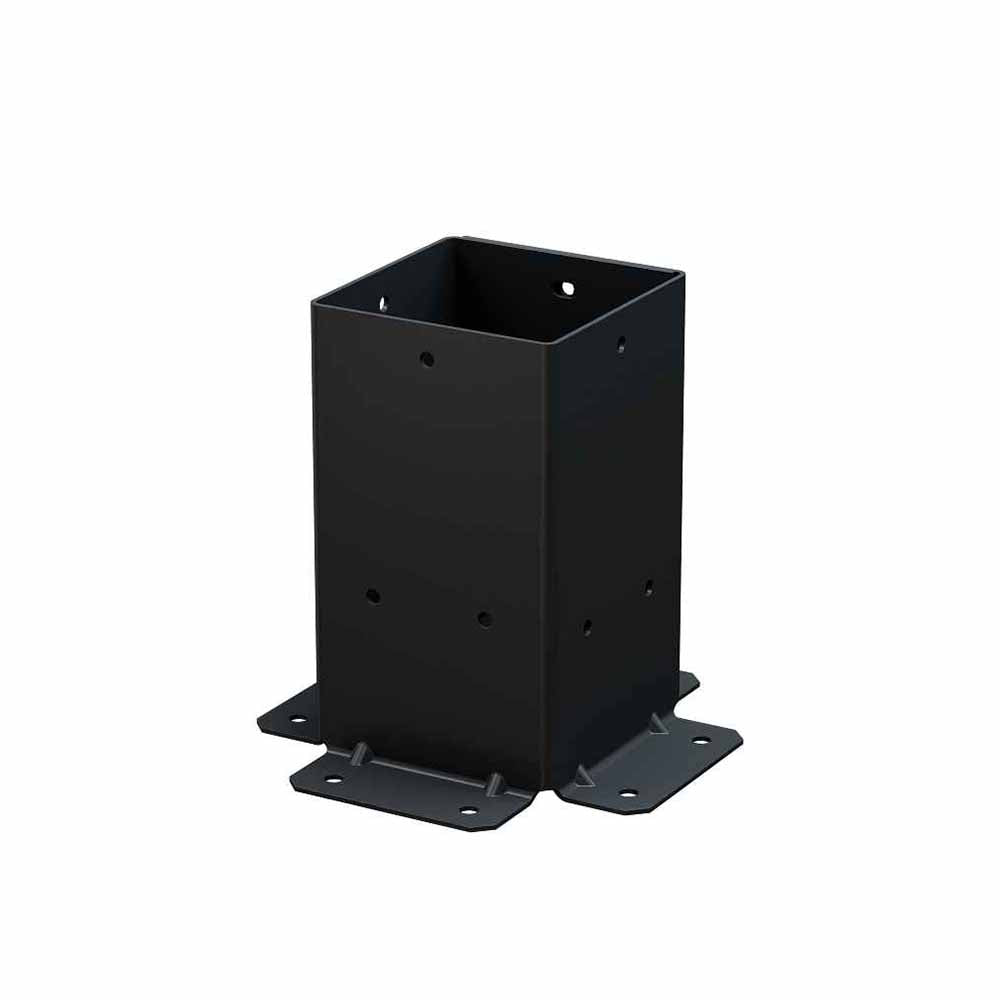

Screws for securing the wood framing to connectors are included, and post bases include Titen Turbo anchors for securing to a concrete footing or pad.

Shade canopy kits (with brackets) sold separately.

Single shade pergola "post-first" install guide

Single shade pergola "tip-up" install guide

Double-wide shade pergola "post-first" install guide

Double-wide shade pergola "tip-up" install guide
