Glass Railing Frame

Impressions Express Glass Rail Frame

Impressions Express Glass Rail Frame

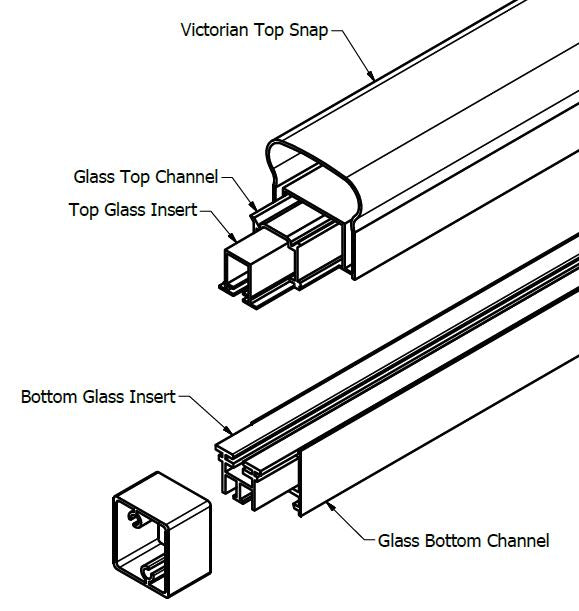

Top and bottom rails for holding a glass panel in place, designed to match Impressions Express railing style and coating. Does NOT include glass, glass should be ordered to size from your local glass supplier.

6' length only, trim to fit between posts.

Once installed, glass can be slipped into place by slipping glass up into upper channel, then moving bottom edge to be dropped into lower channel.

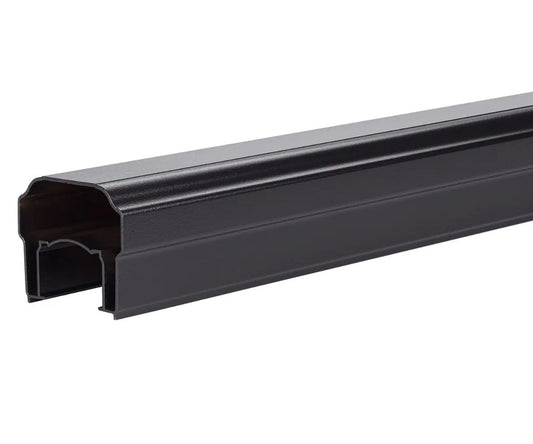

Includes hardware and structural rails, does NOT include Modern or Classic top snap/rail cover.

For 36" rail, glass should be cut to 30-1/2 tall, and 4-1/2" narrower than space between posts.

Color
Length
$175.50
$175.50
Sale Unavailable
Shipping calculated at checkout.
View full details

Product Details


Availability: <2 Week Lead Time (does not include shipping/delivery time)

Material: Aluminum, powder-coated

What's Included: Structural top rail, top gasket, bottom structural rail, bottom gasket, bottom rail brackets, screws for bottom rail bracket, top rail clips, screws for top rail clips, support leg, and support leg screw

Tools Recommended for Installation:

  • Impact Driver or Drill
  • Driving Bit(s)
  • Tape Measure
  • (more tools may be required)
