Azek Vintage PVC Decking

  • The Vintage collection is Azek's premium-level PVC decking, with a realistic woodgrain variegation and a uniform, finely-grained texture.

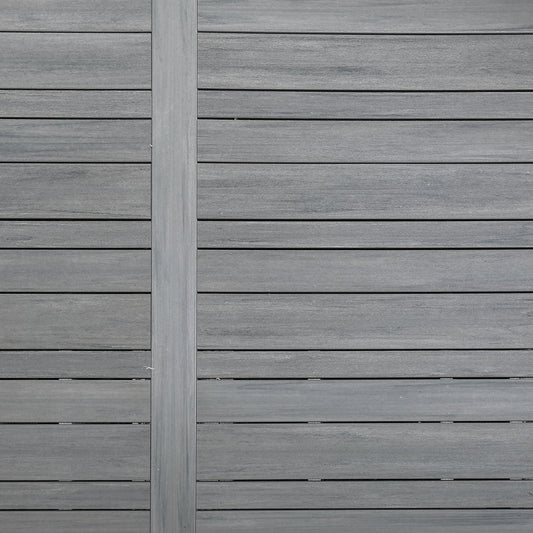

  • Deck boards are full-profile with no scallops, available in 3-1/2", 5-1/2", and 7-1/4" widths.
  • Standard width boards are available in grooved and square edge (non-grooved).
  • Narrow deck boards (3-1/2") and wide deck boards (7-1/4") are only available with no groove.
  • Azek's MAX profile board is 1-1/2" thick and is capable of a longer span of 24" O.C., but is only available in the Coastline color.

Azek Decking Fasteners

  • Non-grooved Azek decking boards can be secured with Cortex screws and plugs, trim head screws, Toploc stainless steel decking screws, or Sideloc stainless steel edge screws.

  • Grooved Azek deck boards can be installed with Concealoc clips, Fusionloc clips, Camo Edge Clips, or Camo Wedge clips. If working with the first or last grooved board in a layout, Cortex screws are recommended because clips won't work unless it's installed between two grooved boards.

  • When joists are installed 16" on center, multiply the linear footage of the decking by 1.5 to get the quantity of screws needed, or multiply the linear footage by 0.75 to get the number of hidden clips needed.

Azek Vintage PVC Fascia and Fasteners

  • Fascia boards are a wider, thinner non-structural board used to cover deck framing, and are typically fastened with a trim head fascia screw, and fastened with 1-5/8" Toploc or trim head screws.
  • For 12" wide fascia, fascia screws should be installed with 3 screws every 12"
  • To figure the number of fascia screws needed for fascia, multiple the linear footage of fascia by 3
  • For risers, a fascia piece is typically cut down to about 7-1/2" to fit the riser dimensions. Screws should be installed with 2 screws at every point where the riser and stringer cross.

Other Items for Azek Vintage Decks

Spare parts and tools that you may find helpful in building your Azek Vintage deck.
